Roadway Components

Updated February 16, 2024


This article applies to:
  • RoadEng Civil
  • RoadEng Forestry

DEFAULT

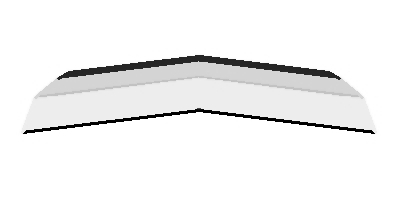

Basic roadway component containing up to 3 surfacing layers. The width of layers can be set explicitly or controlled by layers above.


RURAL 3

Up to 3 layer rural roadway. Width of subbase is variable.


RURAL 6

Rural roadway with compaction zone always occurs. Use "SubCut SG" component for below subgrade only.



URBAN 1

Urban section with optional curb/gutter and sidewalk.

RURAL 1

Up to three layer template with pavement inset optional paved and non-paved shoulder.



RURAL 4

Rural paved road with 3 layers and shoulders.


RURAL 7

Up to 3 layer template paved and non-paved shoulder. The horizontal position of the shoulders is controlled by offsets from c/l.


URBAN 2

Up to four layer template with pavement inset and curb. Curb top and bottom rotate with super elevation.


RURAL 2

Rural road with 1 raised layer of surfacing above a base layer.




RURAL 5

Three layer roadway component with paved shoulder and sod section.


RURAL 8

Widths of ACP, Base and Subbase are explicitly set.



LANE

Up to three layer roadway.


RAIL BED

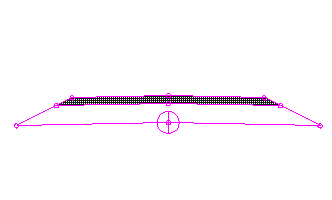

Rail BEd.PNG

Rail bed surface


RAIL TRACK

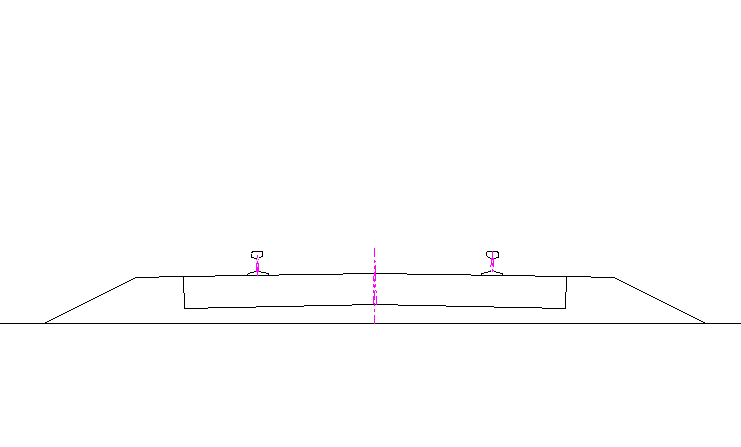

Rail track surface


RESOURCE 1

Rail BEd.PNG

Rail bed surface
