Terrain Output Sheets and Layouts Library

Updated May 05, 2023

This article applies to:
  • Terrain 3D
  • Terrain Forestry
  • RoadEng Civil
  • RoadEng Forestry

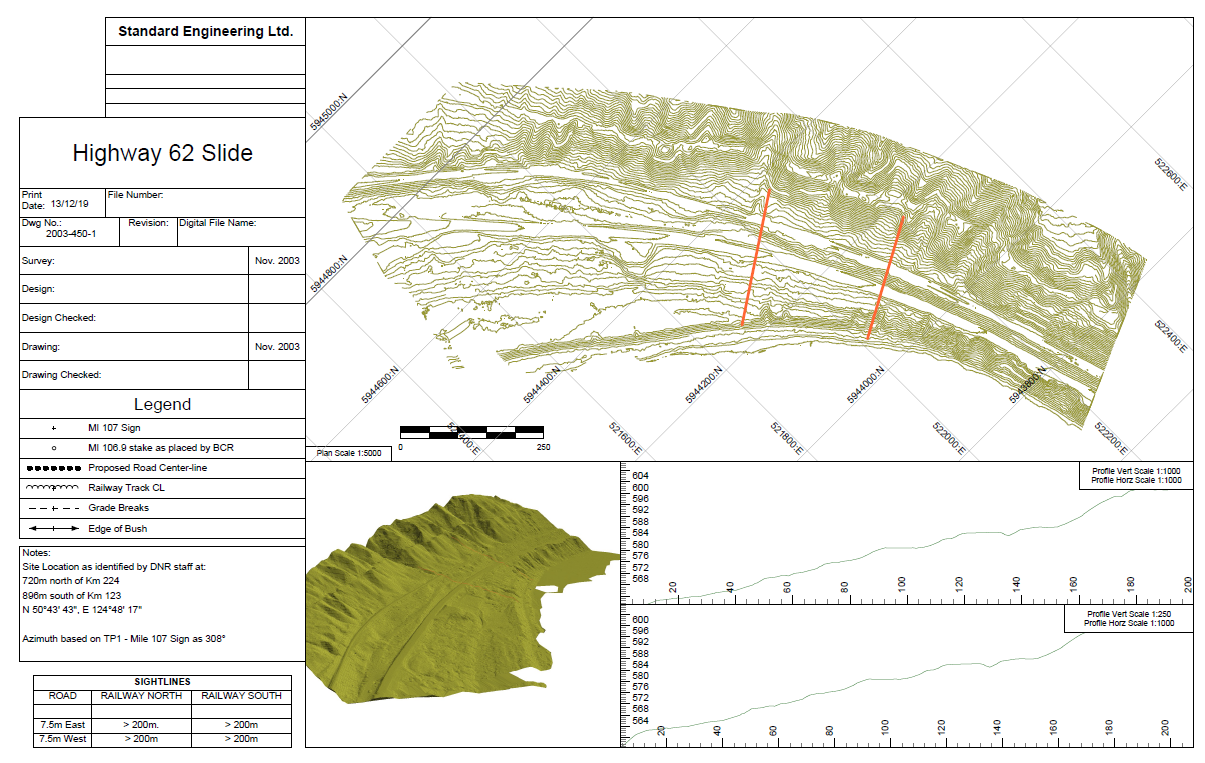

The following Screen layouts (*.ilt) will help you create formatted output sheets. Instructions for installing these layouts is included below.



1. Start the Terrain module and open your design file.

2. Select Setup ribbon tab| Module Setup button. Choose the Install tab.

3. Note the location Default Layouts and Folder. (you can use the copy/paste function to capture this field and paste it into Windows Explorer).

4. Download and save the files (*.ilt) into the folder (as determined in #3 above)

NOTE: We recommend saving your current layout if you have customized it before opening the new layout.

5. To activate the screen layout, View ribbon tab | select your layout from the screen layout drop-down in the Screen Layout combo box.
